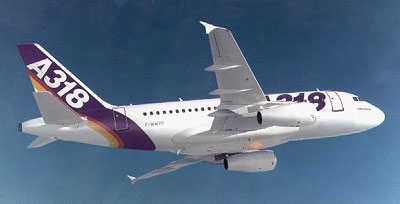

      A318 is a twin engine , typical two-classes cabin layout with 107 passenger seats, single aisle, the range of up to 2800 nautical miles ,power by CFM56-5 or PW6000 engines. Airbus launched in April 26,1999 and offer to customer for a service entry in 2002. Airbus see that today , airlines need families of aircraft which have ability to switch between aircraft of different sizes,on a per flight basis, to optimize load factor,common pool of pilots,cabin crew and maintenance personnel.
      A 318 features a vertical stabilizer that is nearly 30 inches taller than the other aircraft in the single-aisle family. The aircraft's stabilizer stringers were not riveted to parts of the fuselage but weled by laser beam , a process that will be used on the A380 as well.
      Airbus A320 families consist of A318 carry 107 passengers, A319 carry 124 passengers, A320 carry 150 passengers and A321 carry 185 passengers (all of them in a typical two-class cabin lay out).Air france is the launch customer for the A318 and also was the launched customer for A320 in 1981. Egyptair will take A318 in late 2002 and Air france will take delivery in spring of 2003 due to Air france use CFM engine which Air france requested later. The price of this A318 is approximately 35.8 to 38.5 million US. dollars.

SPECIFICATIONS A318

Typical passenger load two-class 107
Cargo loading standard 749 cu.ft 21.21 cu.m
Range 2,800 km. 1,500 nm.
Number of engine   2
Engine types GE / Snecma CFM 56-5 Pratt & Whitney PW 6000
Engine Thrust   20,000 to 23,000 lb
Overall Length 31.44 m. 103 ft 2 in
Wing dimensions
wing span 34.09 m. 111 ft. 10 in.
wing area 122.6 sqm. 1,320 sqft.
wing sweep   25 degrees.
Max.operating speed   0.82 mach
Max.take off weight 59.0 tonnes 130.1 klbs.
Max.landing weight 56.0 tonnes 123.5 klbs.
Operating weight empty 38.4 tonnes 84.6 klbs.
Max.payload 11.1 tonnes 24.4 klbs.
Max.fuel capacity 23,860 litres 6,300 us.gal.

layout a318layout plan of A 318, 107 passengers

layout a319layout plan of A 319, 124 passengers

layout a320layout plan of A 320, 150 passengers

layout a321layout plan of A 321, 185 passengers

1 nm.(nautical mile) = 1.15155 miles, 1 kt (knot) = 1.15155 mile / hr.
1 mach = 761 mph.(SL,ISA)
