 A-330 | ||

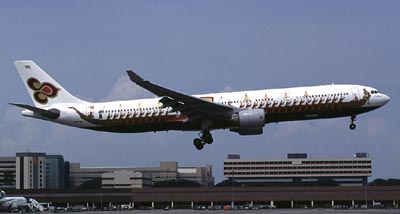

| A330, Airbus intends to offer the airliners an alternative
to older tri-jets like the DC-10 or Lockheed L-1011. The A330 serves regional and medium distance routes. The A330-300 is the
basic model of the A330 family. The program started in June 1987 and the first aircraft took off on 2 November 1992. The certification
by the FAA and JAA was achieved on October 1993. Airlines deliveries began in December 1993. Airbus launched A330 family
which is The A330-200 program in November 1995.The A330-200 is based on the A330-300 and shares near identical systems, airframe,
flightdeck and wings, the only major difference being the fuselage length A330-300 is a 295 passengers in a three-class cabin layout,5850 nautical miles range.Powered by General Electric CF6-80E, Pratt&Whitney PW4000 or Rolls-Royce Trent 700 engines.A330-300 is designed to do what twins do best for medium to extended range market. | ||
| SPECIFICATIONS A330-300 / A330-200 | ||
| A330-300 | A330-200 | |
| Typical passenger load | 295 (3 classes) | 253 (3 classes) |
| Cargo loading standard | 19.7 cubic metres (700 cu ft) | 19.7 cubic metres (700 cu ft) |
| Range | 5,850 nautical miles (10,830 km; 6,730 mi) | 7,250 nautical miles (13,430 km; 8,340 mi) |
| Number of engine | 2 | 2 |
| Engine types | RR Trent 700,CF6-80E1 or PW 4000 | RR Trent 700,CF6-80E1 or PW 4000 |
| Engine Thrust | 64,000-72,000 lbs. | 64,000-72,000 lbs. |
| Length | 63.60 metres (208 ft 8 in) | 58.80 metres (192 ft 11 in) |
| Wing span | 60.3 metres (197 ft 10 in) | 60.3 metres (197 ft 10 in) |
| Wing Area | 361.6 square metres (3,892 sq ft) | 361.6 square metres (3,892 sq ft) |
| Wing Sweep | 30 degrees | 30 degrees. |
| Cruising speed | 0.82 mach | 0.82 mach |
| Ceiling | 41,100 ft (12,527 m) | 41,100 ft (12,527 m) |
| Max.take off weight | 230,000 kilograms (510,000 lb) | 230,000 kilograms (510,000 lb) |
| Max.landing weight | 185 tonnes | 185 tonnes |
| Takeoff Distance (SL,ISA) | 2,500 metres (8,200 ft) | 2,220 metres (7,280 ft) |
| Operating weight empty | 124,500 kilograms (274,000 lb) | 119,600 kilograms (264,000 lb) |
| Max.fuel capacity | 97,530 litres (21,450 imp gal; 25,760 US gal) | 139,090 litres (30,600 imp gal; 36,740 US gal) |
 |

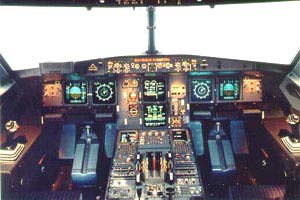

cockpit A330 | |
| 1 nm.(nautical mile) = 1.15155 miles, 1 kt (knot) = 1.15155 mile / hr. 1 mach = 761 mph.(SL,ISA) | ||
