 Alphajet | ||

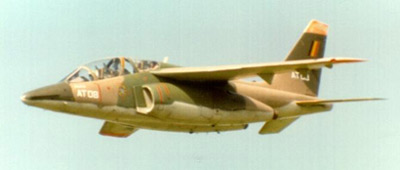

| The ALPHA JET aircraft is a joinly project by Avions Marcel Dassault-Breguet Aviation
and Donier Gmbh .Alpha jet is a Franco-German advanced trainer which was designed to have a secondary
attack roles. Weaponds load and avionics do not match those advanced high technology jets , but the Alpha jet is easy to
fly and simple to maintain.The aircraft is fullfill two things that are for training and tactical support.
For tactical support mission,the air craft is capable to carried and firing of war armament,including guns,
rockets and bombs.The ground attack mission is in the lower threat environments. The fuselage consists of three section: the front section including the pressurized pilot's cockpit and nose landing gear. the center fuselage accommodated fuel tank center wings and main landing gears. the rear fuselage support the tail unit and the engines. | ||
| SPECIFICATIONS ALPHA JET | ||
| Power Plant (Engine) | SNECMA/TURBOMECA | LARZAC 04 C5 |
| Number of Engine | 2 | |
| Engine Thrust | 1,350 kgs | 2,980 lbs |
| Wing Span | 9.11 m. | 29 ft.11 in. |
| Wing Sweepback | 28 degrees | |
| Length | 13.23 m | 43 ft.5 in. |
| Speed | 540 knot. | |
| Takeoff Weight | 5,000 kgs(full fuel + 2 pilots) | 11,000 lbs (full fuel + 2 pilots) |
| Takeoff Distance | 370 m. | 1,200 ft. |
| Combat Radius | 390 km. | 240 miles |
| Fuel Capacity | 1,900 litres | 502 us.gall. |
| Weapon load | 2500 kg | |
| Crew | 1 or 2 | |
| Armament | up to 2,500 kgs (5,500lbs.), DEFA 553 a 30mm gun, firing rate 1200-1500 round per minute | four more external store stations can carry boms and rockets |
| 1 nm.(nautical mile) = 1.15155 miles, 1 kt (knot) = 1.15155 mile / hr. 1 mach = 761 mph.(SL,ISA) |
||
