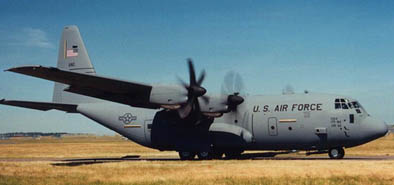

 C-130 HERCULES | ||
| The C-130 Hercules primarily performs the tactical of airlift mission by using its aft loading ramp and door . The C-130 are manufactured by Lockheed Martin Aeronautics Company. On 23 August 1954, the YC-130A Hercules made its maiden flight
at Burbank, California. The initial production model was the C-130A, with Four three-bladed Allison T56-A-9 turboprops. The first C-130A flew on 7 April 1955 and deliveries began in December 1956. Now is five decades since US Airforce issued original design specification and C-130 Hercules still in production. During the Vietnam Conflick, some C-130As were converted into gunships. Inaddition to their side firing 20 mm. Vulcan cannons and 7.62 mm. Miniguns, they also have sensors for target acquisition system and forward looking infra-red (FLIR) and low-light trlevision system. Later designated AC-130. The C-130B entered service in June 1959. The B-model introduced the Four bladed Allison T56-A-7 turboprops, carries additional fuel in the wings. A few C-130Bs, used for aerial fire fighting mission. The C-130D, several A-models were redesignated C-130D which were fitted with ski landing gear for service in the Arctic. The two main skis are 20 feet (6m) long, 6 feet (1.8m) wide. The nose ski is 10 feet (3m) long and 6 feet (1.8m) wide. The D-model also has increased fuel capacity and provision for JET assisted takeoff (JATO). The C-130E is extended range developed from C-130B. deliveries began in April 1962. More powerful Allison T56-A-7A engines were used and a pair of external fuel tanks . The C-130H is similar to the E-model which updated the engines to T56-A-T5 turboprops, a redesigned outer wing, updated avionics and other improvements. deliveries began in July 1974. The H-model has become the most produced of all C-130 models. The C-130J is the latest addition to the C-130 fleet. The C-130J incorporates state-of-the art technology to reduce manpower requirements, lower operating and support costs, and provide life cycle cost savings over earlier C-130 models. The C-130J climbs faster and higher, flies farther at a higher cruise speed, and take off and lands in a shorter distance. The C-130J-30 is a stretch version,adding 15 feet to fuselage, increasing usable space in the cargo compartment. The C-130J-30 incorporates two extension plugs, one forward and one aft. The forward plug is 100 inches long while the rear plug is 80 inches for a total of 180 inches or 15 feet. The C-130J and C-130J-30 major system improvements include advanced two-pilot flight station with fully integrated digital avionics, color multifunction liquid crystal displays , global positioning system, fully integrated defensive systems. The C-130J , C-130J-30 incorporates new turboprop engines with six bladed, all composite propellers coupled to Rolls Royce AE2100D3 turboprop engines and incorporated with auto-pilot. More than 145 C-130 Hercules aircraft were deployed in support of Operations Desert Shield and Desert Storm. From 10 August 1990 to the cease-fire, C-130s flew 46,500 sorties and move more than 209,000 peoples and 300,000 tons of supplies. They provided all supports. Special Variant : Tactical Airlift = All models , Attack Gunship designated AC-130 , Electronic Warfare designated EC-130E , EC-130H , Aerial Refueling designated KC-130 | ||
| SPECIFICATIONS C-130 HERCULES | ||
| Engine (Four engines) | C-130A | Allison T56-A-9 |
| C-130B | Allison T56-A-7 | |
| C-130D | Allison T56-A-9 | |
| C-130E | Allison T56-A-7A | |
| C-130H | Allison T56-A-15 | |
| C-130J , C-130J-30 | Rolls Royce AE2100D3 | |
| Engine Thrust | Allison T56-A-9 | 4,200 shp |
| Allison T56-A-7 | 4,200 shp | |
| Allison T56-A-15 | 4,591 shp | |
| Rolls Royce AE 2100D3 | 4,591 shp | |
| Propellers | C-130A (Three blades) | Hamilton Standard electro-hydromatic |
| C-130B , D , E , H (Four blades) | Hamilton Standard electro-hydromatic | |
| C-130J , C-130J-30 (Six blades) | Dowty R391 | |
| Length | C-130A , B , D, E , H , J | 97 ft. 9 in. (29.3 m.) |
| C-130J-30 | 112 ft. 9 in. (34.69 m.) | |
| Height | 38 ft. 3 in.(11.4 m.) | |
| Wingspan | 132 ft. 7 in.(39.7 m.) | |
| Speed | C-130A , B , D , E , H | 345-366 mph |
| C-130J , C-130J-30 | 410-417 mph | |
| Ceiling | 33,000 ft.(10,000 m.) | |
| Max. Takeoff Weight | C-130A , B , D , E , H, J | 155,000 Lbs.(69,750 kg.) |
| C-130J-30 | 164,000 Lbs.(74,393 kg.) | |
| Range | C-130A , B , D , E | 1,838 miles (1,597 nm.) |
| C-130H | 2,006 miles (1,743 nm.) | |
| C130J | 2,729 miles (2,371 nm.) | |
| C-130J-30 | 2,897 miles (2,517 nm.) | |
| Crew | C-130A , B , D , E , H | 5 (2 pilots, navigator, flight engineer and loadmaster) |
| C-130J , C-130J-30 | 3 (2 pilots and loadmaster) | |
| Payload | C-130A , B , D , E | 36,720 Lbs (16,656 kg.) |
| C-130H | 35,220 Lbs.(15,976 kg.) | |
| C-130J | 38,301 Lbs (17,373 kg) | |
| C-130J-30 | 38,812 Lbs (17,605 kg) | |
| Passengers | C-130A ,B ,D ,H , J | 92 Combat troops |
| C-130J-30 | 128 Combat troops | |
 |
cockpit C-130J | |
 |
Un-loading from C-130 Hercules | |
| 1 nm.(nautical mile) = 1.15155 miles, 1 kt (knot) = 1.15155 mile / hr. 1 mach = 761 mph.(SL,ISA) | ||
