 EC-155 | ||

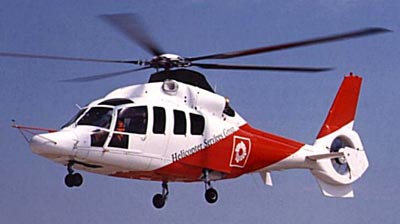

| The Eurocopter EC-155 is a superior wide bodied quiet with long range performance helicopter. The EC-155 is a twin engine, medium lift and has five blades main rotor and advanced Fenestron tail rotor which has ten blades around the hub . The Fenestron type tail rotor help reduce both vibration and noise. The EC-155 can accommodate up to 12 passengers and 2 pilots. The EC-155 feature the most technologically advanced instrument panel, with LCD displays. It is powered by twin engine Turbomeca Arrius 2C1 and all-up weight of 10,582 lbs. | ||
| SPECIFICATIONS EUROCOPTER EC-155 | ||
| Standard seating capacity | 2 pilots | 12 passengers |
| Engine | Turbomeca Arrius 2C1 | |
| Power | 851 shp / Engine | |
| Number of Engine | 2 | |
| Main Rotor | five blades | 41.34 ft (12.60 m.) |
| Max.Takeoff | 10,582 lbs | |
| Fuel capacity | 330 gall. | |
| Length | with blade in front | 46.91 ft. |
| Speed | max.speed 175 kts | Cruise speed 143 kts |
| Range | 449 nm. | |
| Ceiling | 6,210 ft. | |
| Empty weight | 5,573 lbs | |
 |
EC-155 Cockpit | |
| 1 nm.(nautical mile) = 1.15155 miles, 1 kt (knot) = 1.15155 mile / hr. 1 mach = 761 mph.(SL,ISA) |
||
